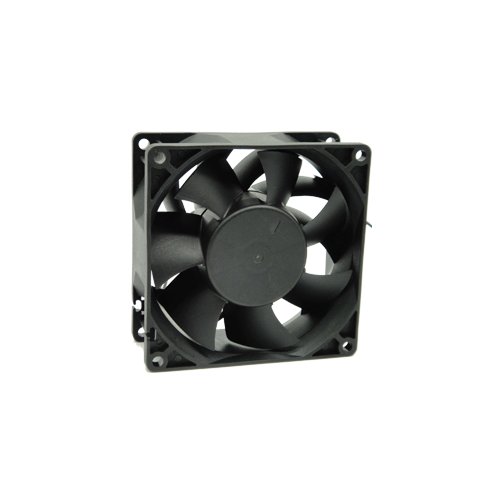

SIZE:92x92x38mm
CONSTRUCTION:Glass Fiber reinforced plastic; Impeller and housing PBT are UL 94V-0 rating
OPERATING TEMPERATURE:Ball bearing -10℃ to +70℃;Sleeve bearing -10℃ to +60℃
INSULATION RESISTANCE:10meg Ohm min, at 500 VDC(between frame and terminal)
DIELECTRIC STRENGTH:1mA max, at 2000 VAC 1 minute(between frame and terminal)
FUNCTION OPTIONS:FG,RD, PWM,Auto Restart, Polarity Protection
| Model |
Bearing Type |
Rated Voltage |
Power | Speed |
Air Flow |
Static Pressure |
Noise Level |
Weight |
| VAc | W | RPM | CFM | mmH₂O | dBA | g | ||
| YEH9238x2 | S or B | 110/220 | 5 | 3500 | 67.26 | 8.56 | 44.73 | 168 |
| YEM9238×2 | S or B | 110/220 | 4 | 3000 | 57.65 | 6.29 | 41.05 | 168 |
| YEL9238x2 | S or B | 110/220 | 3 | 2500 | 48.04 | 4.37 | 36.7 | 168 |
1.Specifications subject to change without notiec;
2.Design and provide products according to client’s requirements.
